One square chrome fitting fills the bath, handles overflow and controls drainage.
Three functions combined: Integrates bath filling, overflow protection and clicker drainage.
Square 65mm faceplate: Creates a crisp alternative to a conventional bath spout.
Sprung slotted waste: The 70mm flange opens and closes with a press.
600mm hose included: Links the filler overflow to the threaded waste body.
Original price was: £169.00.
Our Price: £78.45Current price is: £78.45.Save £90.55 off RRP
| Product Type | Bath filler, overflow and waste |
|---|---|
| Brand | Scudo |
| Finish | Chrome |
| Construction Materials | Brass, stainless steel and plastic |
| Installation Type | Bath fixed |
| Overflow Design | Square |
| Overflow Faceplate Size | 65 x 65mm |
| Waste Type | Slotted |
| Waste Operation | Sprung clicker |
| Waste Flange Diameter | 70mm |
| Waste Body Height | 68mm |
| Overflow Hose Length | 600mm |
| Bath Filler Inlet Connection | G1/2 |
| Waste Outlet Connection | G1 1/2 |
| Waste Connection Type | Threaded nut |
The Scudo Chrome Square Sprung Waste Overflow Bath Filler combines the water inlet, overflow and clicker waste into one coordinated installation, removing the need for a conventional spout on the bath rim. Water enters through the square chrome overflow fitting, while the matching 70mm waste cover provides simple push-operated opening and closing at the base of the bath. Its polished finish and angular overflow plate suit modern brassware schemes, and the 600mm flexible hose helps connect the two bath-mounted components within the available space beneath the tub.
Confirm the bath openings, concealed connection space and compatibility with the chosen water controls before fitting.
Water is delivered through the overflow fitting, leaving the upper bath surface free from a conventional projecting filler spout.
The 65 x 65mm overflow faceplate provides a defined angular accent that can coordinate with square taps and shower controls.
The sprung clicker mechanism allows the waste to be opened and closed by pressing the chrome cover.
The square filler and overflow fitting must suit the bath construction and available mounting position.
Room is needed for the 68mm waste body, threaded connections and the 600mm overflow hose without tight bends or compression.
This product delivers water into the bath but still requires a compatible valve or tap control arrangement to regulate flow and temperature.
The incoming mixed water connects to the G1/2 inlet behind the square overflow fitting and is released into the bath through its concealed outlet. This allows the overflow component to perform two functions while keeping the bath rim clear. A separate compatible valve or tap control is still required to turn the water on and regulate its temperature.
A slotted waste is designed for a bath or basin with an overflow. The slot allows excess water entering the overflow system to pass into the waste pipe rather than being trapped. Because this product includes an overflow fitting, the supplied slotted waste is matched to that arrangement.

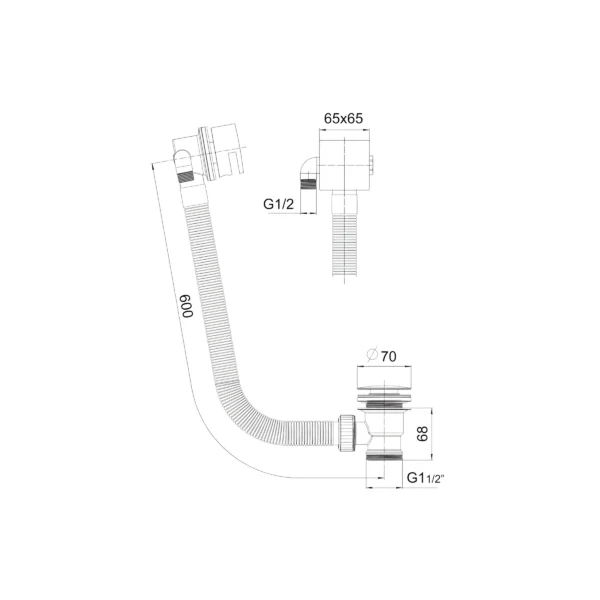

Allow for the 600mm flexible overflow hose, the 68mm-high waste body and the G1 1/2 waste outlet connection. The hose should reach between the overflow and waste without being stretched, crushed or sharply kinked. The installer should also confirm access to the threaded nut connections before the bath panel or surrounding finishes are permanently fitted.
| Brand | Scudo Bathrooms |
|---|
