Square matt black geometry gives exposed basin plumbing a sharper architectural finish.
50mm square trap body: Creates a crisp modern feature beneath the basin.
330mm outlet pipe: Reaches the wall connection in exposed installations.
Adjustable inlet section: Provides approximately 10–100mm of fitting flexibility.
G1¼-inch threaded connection: The basin waste itself is purchased separately.
Original price was: £102.00.
Our Price: £47.49Current price is: £47.49.Save £54.51 off RRP
| Product Type | Basin bottle trap |
|---|---|
| Brand | Scudo |
| Style | Modern |
| Finish | Matt black |
| Material | Stainless steel |
| Shape | Square |
| Installation | Wall mounted beneath a basin |
| Overall Trap Height | 120mm |
| Horizontal Pipe Length | 330mm |
| Trap Body Size | 50 x 50mm |
| Specified Inner-Pipe Adjustment | 10–110mm |
| Drawing Inner-Pipe Adjustment | 10–100mm |
| Basin-Waste Connection | G1¼” threaded nut |
| Wall Pipe Diameter | 35mm |
| Wall Flange Diameter | 70mm |
| Intended Fixture | Basin |
| Basin Included | No |
| Basin Waste Included | No |
| Guarantee | 5 years |
The Scudo matt black square bottle trap is made for bathrooms where the plumbing beneath a wall-hung or open-frame basin remains on show. Instead of leaving a standard plastic trap visible, it gives the waste run a deliberate furniture-like finish, combining a compact 50mm square body with a straight black wall tube and a round cover plate that hides the pipe entry neatly. The contrast between the squared trap and circular flange adds just enough detail without making the fitting look fussy, while the 330mm tube gives the installer useful length to work with before it is positioned against the finished wall.
Check the basin waste thread, wall position and exposed plumbing layout before installation.
The decorative stainless steel body gives exposed pipework a far more intentional appearance beneath an open basin.
Its square trap body can coordinate neatly with black basin taps, wastes, frames and geometric accessories.
The upper connecting section provides limited vertical adjustment for aligning the trap beneath the basin waste.
A decorative exposed trap may add little value where the entire waste assembly will be hidden inside furniture.
The threaded trap inlet must match the chosen basin waste rather than being assumed to fit every outlet size.
The supplied horizontal pipe length should be checked against the waste centre and finished wall position before ordering.
A wall-hung basin often leaves the waste pipe and trap completely visible, so a standard plastic assembly can look unfinished even when it works perfectly well. This stainless steel bottle trap turns that necessary plumbing into part of the bathroom design. Its square black body complements contemporary brassware and gives the area beneath the basin a cleaner, more considered appearance.
The G1¼-inch threaded nut connects the top of the bottle trap to the threaded outlet beneath a compatible basin waste. The waste itself is not confirmed as included, so its lower thread must be checked before the two products are ordered together. Matching the visible finish alone is not enough if the mechanical connection sizes differ.
The 330mm pipe gives the installer working length between the bottle trap and the wall outlet, and exposed waste tubes are commonly sized on site to suit the final position. Any cutting should be measured from the installed basin and completed by the fitter so enough pipe remains inside the wall connection. The round 70mm flange then covers the entry point around the 35mm tube for a neater finish.

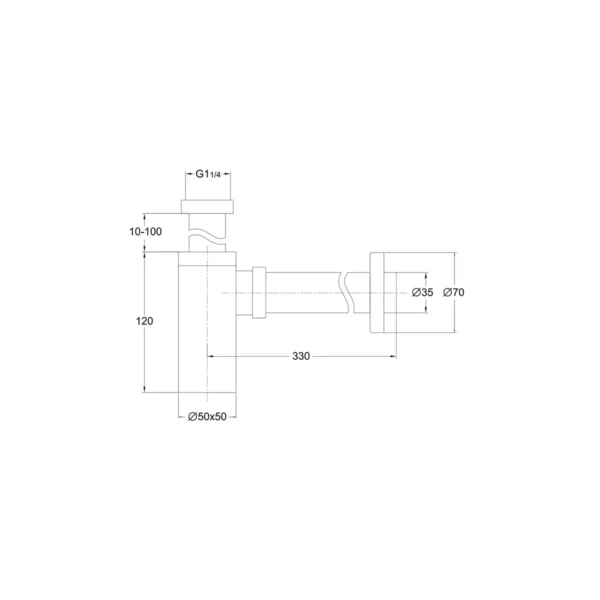

The written specification gives an adjustment range of 10–110mm, while the supplied technical drawing marks it as 10–100mm. Because the difference affects how far the trap can sit below the basin waste, the installer should work to the more conservative 100mm figure unless Scudo confirms otherwise. This is particularly important where the basin outlet and wall waste position leave little room for adjustment.
| Brand | Scudo Bathrooms |
|---|
